Steam Pumps

Friends Models offers pumps that were designed and/or sold by by Bill VanBrocklin, Gene Allen (designed by VanBrocklin), Lester Friend (who heavily "borrowed" from LBSC), and Harry Sait.

In this modern era of "ready to run" and "plug and play", Friends is pleased to offer you "not ready to run". These are rough castings and/or drawings for decades-old pump designs for your locomotives, which you machine and build yourself, in the tradition of the old days. The below pump(s) are from the original patterns and drawings; are "sand cast" near Boston, Mass. USA the old-fashioned way; and are offered here so that you might experience a "return to", or a "feel for", the "good old days".

Machining and building such a pump will provide several hours of workshop enjoyment, and a "return" to the 1930-1980 era of the hobby.

_______________________________________________________



HARRY SAIT Worthington-style pump, 1/2" scale, for 2-1/2" gauge (or small 3-1/2" gauge)

This is the feedpump that was "under the cab, mounted crosswise", on Harry Sait's famous 1/2" scale "Boston and Maine" 2-8-4 Berkshire...


The Berkshire. The feedpump is under the the cab, mounted crosswise.

Harry Sait live steam Worthington pump
The "Worthington-style" feedpump by Harry Sait. Approximately 5-1/2" long x 1-3/4" width.

Harry Sait live steam

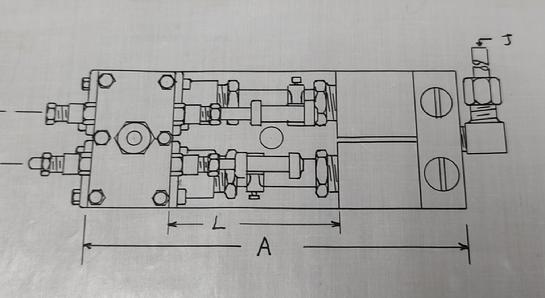

The top view of the Harry Sait "Worthington" type pump

Harry Sait Old Orchard Beach ME Maine

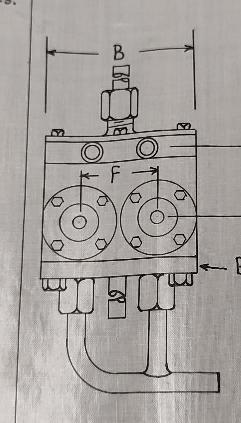

The end view of the Sait pump. Approximately 1-3/4" width.

Carl Purinton Harry Sait live steam

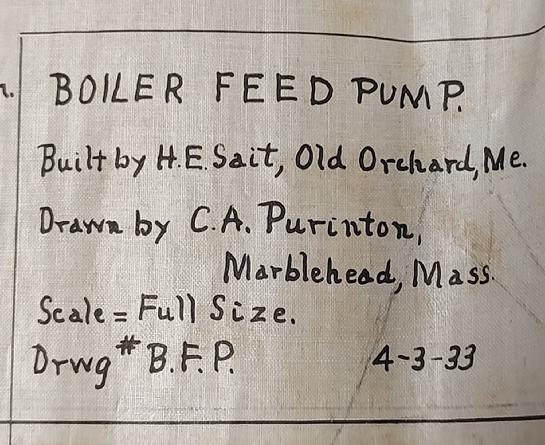

The label, on the Harry Sait pump drawing. Note that the names are a "Who's Who" of live steam history, some 90 years ago.


The Harry Sait steam-powered feedwater pump is a "duplex" pump (one side's valve ports control the other side's piston via drilled passages in the steam cylinder). In its horizontal-mounted configuration, the pump gives the appearance of being a "Worthington" style.

It can be built from the drawings; it is machined from stock sizes of metals (brass, stainless steel, etc.), and commercial hardware. No castings required. Click the PayPal link below, to purchase the drawings. (Drawings copied from Carl Purinton's inked original vellums). Price $25.00 plus $9.00 shipping.







_______________________________________________________

The 1" scale VanBrocklin pumps that were formerly available from Gene Allen, are available from Friends Models.

Friends acquired the designs from Allen Models of Michigan




Worthington pump. Designed by Bill VanBrockin, 1956.

5/8" steam bore; 3/8" water bore. 1/2" stroke.

This is a true "Worthington" pump. The piston on one side, moves the slide valve for the opposite piston.


Bill VanBrocklin steam water duplex Worthington pump
This was the advertisement by Bill VanBrockin when this pump made its debut in 1956.






Van Brocklin steam pump
The Bill VanBrocklin "Worthington" duplex pump. (Photo used with permission of Allen Models of Michigan)


1" scale or small 1-1/2" scale
2 body castings (bronze)
Stock for steam chest, center sleeve, & covers
8 stainless steel balls
4 U-cups
Set of 5 prints

$125.00 plus shipping (USA)



-------------------------------------------------------------------------------------------------------------




Van Brocklin steam pump

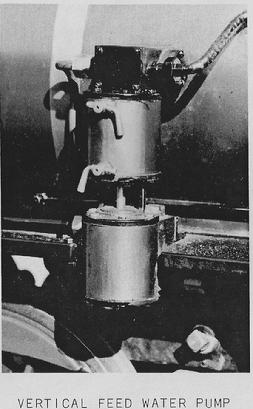

The Bill VanBrocklin 1" scale "Single" Westinghouse-style pump. Made from bar stock. Photo used with permission of Allen Models of Michigan..

1" scale (or small 1-1/2" scale) VanBrocklin "Single" Westinghouse type vertical pump includes drawings only. No castings required. Pump made from brass bar stock, stainless steel, etc. (Includes drawings for water and air).

$25.00 plus shipping (USA)



_______________________________________________________


3/4" Scale Steam-Powered Water Pump

Lester Friend's near-copy of the famous LBSC type






Lester Friend live steam castings
The Yankee Shop "Duplex" steam-powered water pump for 3/4" scale, from about 1940. Based on, and similar to, the famous "LBSC" Donkey Pump, this was a Yankee Shop "standard accessory" in the early 1940s, built by many of the live steamers back then. It has been off the market for decades. It has returned so that you might have an interesting project to tackle, a useful accessory to place on your locomotive, and, to have a brief "feel" for 1940s live steaming. Valves are controlled by external "rocking levers". Includes water and steam castings, and the drawings.
3/4" scale Yankee Shop Steam Pump; USA Shipping
$125.00


3/4" Scale Yankee Shop Steam Pump; Canada Shipping

$125.00


_______________________________________________________



1" scale VanBrocklin "Duplex" water pump, rough casting set


Complete materials included!

8 stainless steel balls, 12 Viton O-rings, 8 stainless steel set screws, 46 hex head bolts, 2 lengths of round stainless steel, all needed brass stock (round, hexagon, rectangle, and 1/16" thick sheet), and a set of drawings.....are INCLUDED.


2-cylinder steam-powered pump for pumping water into boiler. Crossed ports, slide valves, no tricky shuttle valve or complex ports to machine.

Designed by William S. ("Bill") VanBrocklin Jr. of Dover, MA.




Bill VanBrocklin steam pump
The 1" scale "duplex" water pump by Willam "Bill" VanBrocklin. Complete castings and materials package.
William S. Bill VanBrocklin Jr. steam pump injector
Castings for the 1" scale VanBrocklin "duplex" steam-powered water pump. Made in USA and proudly offered by Friends Yankee Shop Models.
The 1" scale VanBrocklin duplex water pump. Click on photo to enlarge.





Two bronze castings, 1 steam and 1 water, plus a complete set of drawings and all needed materials and hardware, as formerly available from William (Bill) VanBrocklin. Castings are brand new, made in New England USA. The drawings are copied from Mr. VanBrocklin's inked originals as formerly available from Power Model Supply and from Mr. VanBrocklin.

Tools required: 6" (or larger) lathe; mill-drill machine or small milling machine (or a good quality drill press with an X-Y milling table and a positive depth stop). A height gage (with scriber) for measuring and marking off the holes' locations, is recommended.


Builder will need to supply his own displacement lubricator (not included). Balls, O-rings, screws, bolts, setscrews, and ALL MATERIAL (brass, stainless, etc.) is included.

$305.00 plus $30 shipping to the USA; plus $85 shipping to Canada. For other countries, please inquire.

If you mismachine a casting, replacements are in stock & available.

To purchase, click the Paypal link below to pay with your Paypal account or your credit card. If you would like to pay by personal check, or by regular credit card (not through Paypal), please contact me for details.




Duplex Pump: USA Shipping
$305.00


Duplex Pump: Canada Shipping
$305.00






_______________________________________________________

1-1/2" scale Van Brocklin single-cylinder water or air pumps NOW AVAILABLE.


Formerly available from Bill VanBrocklin of Dover Massachusetts; C.A. Street & Co. of North Carolina; and Power Model Supply of Missouri. These castings are made in New England USA from Bill VanBrocklin's original patterns.


  • "Machine Your Own" in the tradition of the old days of live steam.



  • Made in New England USA, using the old-fashioned "sand casting" method.



  • A challenging project requiring skill and good workmanship. Great project for weekends or winters!


Castings, drawings, & materials list included. Materials (metal stock, O-rings, balls, screws and hardware, etc.) at this time are to be supplied by the builder. (Friends will offer a "materials package" at a future time). Drawings copied from Bill Van Brocklin's originals.


WATER PUMP includes: Valve Head, steam cylinder, & water cylinder (bronze castings). Complete drawings, and materials list.

AIR PUMP includes: Valve Head, steam cylinder, & air cylinder (bronze castings). Complete drawings, and materials list.


Click the images below, to buy castings for shipment to the USA. For shipping to other countries, please contact me. Thank you!



Van Brocklin air water pump castings

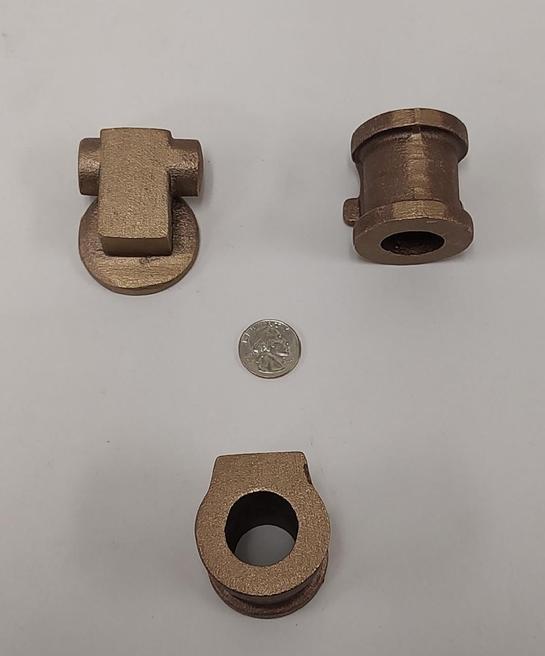

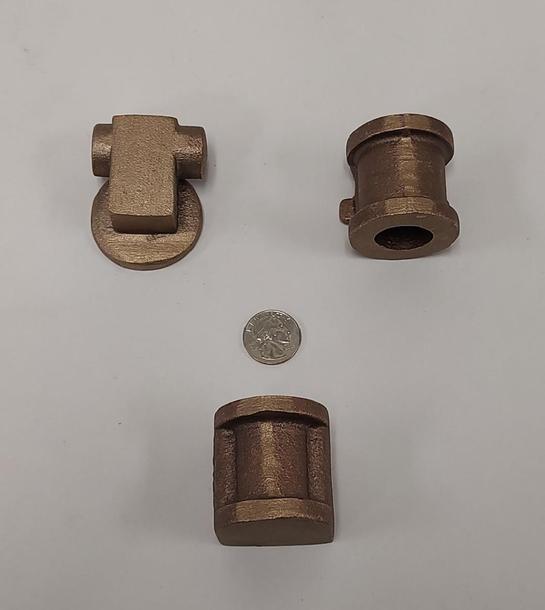

"Rough Castings" in bronze, for the world-famous VAN BROCKLIN single-cylinder water and air pumps. 1-1/2" scale, 9-1/2" Westinghouse style. Cast in New England USA from Bill VanBrocklin's ORIGINAL patterns. Left to right: water cylinder, air cylinder, valve head, and steam cylinder.
VanBrocklin live steam pump castings

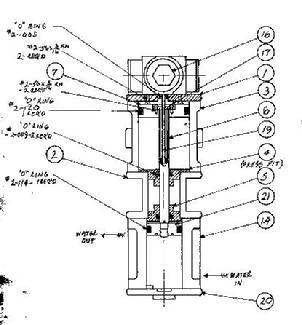

The elevation drawing of the Van Brocklin single-cylinder pump. Castings for water or air pumps, now available.

Video of an under-construction pump's steam cylinder....first test on air. (Castings by Friends Models. Machining/assembly by Friends customer Joe M.):

Media
Click to see an under-construction 1-1/2" scale VanBrocklin pump from Friends Models, under its first air test



1-1/2" scale Single-Cylinder Water Pump Castings; USA Shipping
$295.00


Please click the image at left to purchase your Single-Cylinder Van Brocklin water pump castings. (USA Shipping). Contact me to make arrangements for shipping to other countries, thank you!




Please click the image at right to purchase your 1-1/2" scale Single-Cylinder VanBrocklin Air Pump castings. (USA Shipping). Contact me to arrange for shipping to other countries. Thank you!

1-1/2' scale Single-Cylinder Air Pump Castings; USA Shipping
$295.00
