Classic Live Steam of Yesteryear


Baltimore and Ohio Lafayette live steam castings kit

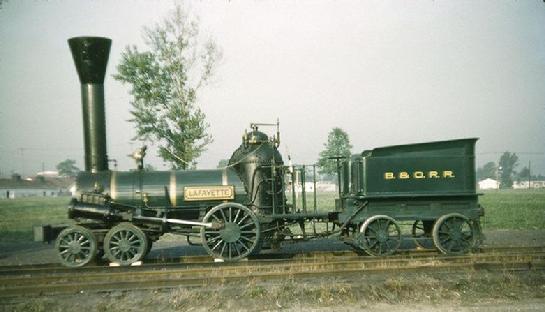

The Baltimore and Ohio Railroad "Lafayette". This is actually a photo of the 1927 reproduction, but the appearance is the same. H.J. Coventry designed this engine in 1-1/2" scale. Wheel and Cylinder castings are available, below. All other castings are in development/production (2019/2020).


1-1/2" Scale, Baltimore and Ohio Railroad early 4-2-0 "Lafayette"

Originally built by Norris at Philadelphia


In the 1960s, H.J. Coventry designed a 1-1/2" scale version of the famous B & O "Lafayette" locomotive.

The prototype Lafayette, built by Norris in Philadelphia in 1837, was the first B & O locomotive to have a horizontal boiler, and was one of the earliest to use a lead truck. Although the original "Lafayette" does not exist, a reproduction was built for the B & O's Centennial Exposition in 1927, and is on display at the Baltimore & Ohio Museum in Baltimore MD.

The 1-1/2" scale version can be built for 7-1/4" or 7-1/2" gauge. It has an all-copper boiler, or, bronze castings can be used. It uses "drop hook" gear, a style of early "Gab Gear" (a primitive, but functional, predecessor to the Stepenson gear). The engine can be reversed from the cab (even though there is no cab!), although no change in cutoff can be effected.
The locomotive is a simple small engine of an early prototype; it is in the popular 1-1/2" scale size, and is ideal for the builder who wants something unique, and interesting to build, and something "different"
to bring to the track.

Drawings, a complete set detailing all parts and assemblies, are available below. Also castings for the cylinders, drive wheels, pilot wheels, and tender wheels are available below. All other castings are in development or production (2019/2020).






1-1/2" Scale "Lafayette" Blueprints; USA Shipping
$299.00

_______________________________________________________

Cylinder Section

Cylinders
Cylinder Heads (front and rear)
Steam Chests
Steam Chest Covers
Slide Valves
Exhaust Base (tee)
Exhaust Stand
Crossheads


Baltimore and Ohio Lafayette live steam castings kit
The Cylinder Section for the 1-1/2" scale Lafayette. Includes cylinders, front and rear cylinder heads, steam chests, slide valves, steam chest covers, exhaust base (tee), exhaust stand, and crossheads. The front and rear cylinder heads, and the steam chest covers, are fitted with chucking spigots for easier setup and machining. These iron and bronze castings are made in New England, USA by the traditional "sand casting" method, to Mr. Coventry's exact original specifications.

Click the link below to purchase your Lafayette "Cylinder" section. $695.00 plus shipping, to the USA. For other countries, please inquire.





_______________________________________________________


Baltimore and Ohio Lafayette live steam
Drive Wheels for the 1-1/2" scale Lafayette. Click the photo to enlarge.

B and O Lafayette live steam

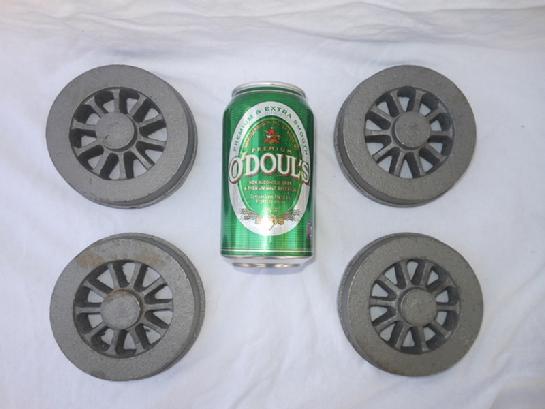

Pilot Wheels for the Lafayette. Click the photo to enlarge, and for more information.


To purchase your pair of Lafayette drive wheels ($250 plus shipping), please click the Paypal link below. For countries other than the USA, please inquire.



To purchase your set of Lafayette Pilot Wheels ($200 plus shipping), please click the link below. For countries other than the USA, please inquire.


_______________________________________________________



Baltimore and Ohio 4-2-0 Norris Lafayette

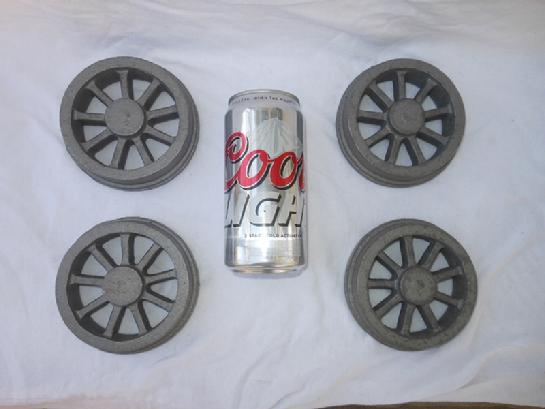

Tender Wheels for the Lafayette. Click the photo to enlarge, and for more information.



To purchase your Lafayette Tender Wheels ($200 plus shipping), please click below. For countries other than the USA, please inquire.
