3/4" scale, 3-1/2" gauge K4 class 4-6-2 "Pacific"; Pennsylvania Railroad






NEW October 2019! Drive Wheel castings now available! Please scroll down...


Pennsylvania Railroad K4 live steam

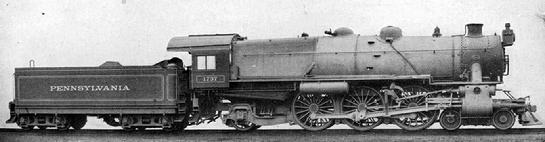

The H.J. Coventry K4 in 3/4" scale most resembles this early version of the Pennsy K4....short-height tender for hand-firing, and manual "screw" reverse. Piston tail rods were on Mr. Coventry's 1920s version of the live steamer but were changed for the 1959-1960 redesign. They may be added by the builder to suit individual tastes.

3/4" scale live steam K-4

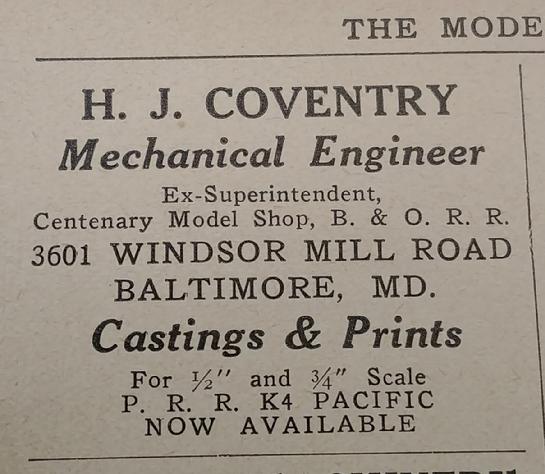

A 1929 advertisement for the 3/4" K4 in "The Modelmaker" magazine. You can buy the EXACT castings that were mentioned in this ad, and build your own K4, today.....NINETY years after the ad was run.





Designed by H.J. Coventry beginning about 1919 and available commercially from the late 1920s until about 1960; design was updated with minor changes circa 1959-1960.



  • Coal Fired
  • Walschaert Valve Gear
  • Piston Valves

  • Steam Clearances, and Exhaust Ports, "cored" into the cylinder castings. No complex "step boring" or difficult drilling required.
  • Steam Brakes
  • Superheater

  • Hand Pump in the tender; left and right injectors on the engine

  • 5" diameter Copper boiler; silver soldered. Seamless 5" tube may be purchased from suppliers in the UK, or it can be "rolled" from flat copper sheet and the joint silver soldered.
  • Belpaire Firebox, with cast bronze throat sheet for easier fabrication


Machinery Requirements: 9" or larger lathe (10" lathe recommended), small to medium sized milling machine, drill press, grinder, hand tools.



The complete set of drawings is available below, for live steamers who may want to look the project over before buying castings. (If you are outside the USA and would like these drawings shipped to you, please inquire).

A complete castings list may also be seen below.

Thank you for your interest!





3/4" scale "Pennsylvania K4" Drawings; USA Shipping
$299.00



_______________________________________________________

Section 1: Frame



Mr. Coventry's K4 uses a steel frame, comprised of left and right frame sections which are 3/8ths inch thick each (which you may purchase locally or online); the frame has various bronze castings attached for functionality, appearance, and overall rigidity of the frame assembly. These frame castings are exactly the same as were offered by H.J. Coventry for his "K4" beginning back in the 1920s. You cannot tell the difference between these, and those cast almost a century ago. They are sand cast at a local foundry in New England, USA.



H.J. Coventry live steam K4

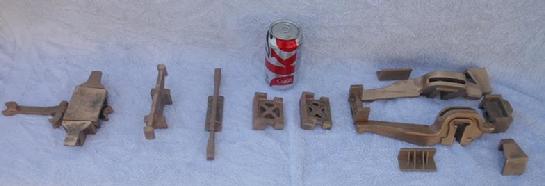

The Frame Section for the 3/4" scale K4 "Pacific" by H.J. Coventry is now available. Bronze "sand castings" are made in New England, USA to Mr. Coventry's original (1920's) specifications. Note: trailer truck sideframes are included in this photo for clarity and "good looks", but are not included in the "frame section". They may be purchased with the "trucks" section, available below.

Section 1: FRAME

Guide Yoke
Motion Beam
Frame Brace (2)
Draft Casting (drag beam)
Trailer Truck Pivot Bracket
Front Deck
Front Corner Bracket (2)
Trailer Truck Bearer Bracket (2)
Footstep (2)
Front Coupler





The Paypal button on the right is for your K4 "Frame Section" to be shipped to the USA. Note: left and right "trailer truck sideframe" castings (shown in photo for clarity and appearance) NOT included. They may be purchased with the "Trucks" section, below. (For shipping to other countries, please inquire.)

K4 Frame Section; USA Shipping
$695.00


K4 Frame Section; Canada Shipping
$695.00
The Paypal button at left is for your K4 "Frame Section" to be shipped to Canada. Note: left and right "trailer truck sideframe" castings (shown in photo for clarity and appearance) NOT included. They may be purchased with the "Trucks" section, below. (For shipping to other countries, please inquire.)



_______________________________________________________


Section 2: Drive Wheels

Driving Wheel, main (2)
Driving Wheel, front and back (4)
Driver Bearings (6)
Bronze Bar for bottom of Driver Bearings


NOW AVAILABLE 2019!


Pennsy K4 live steam kit

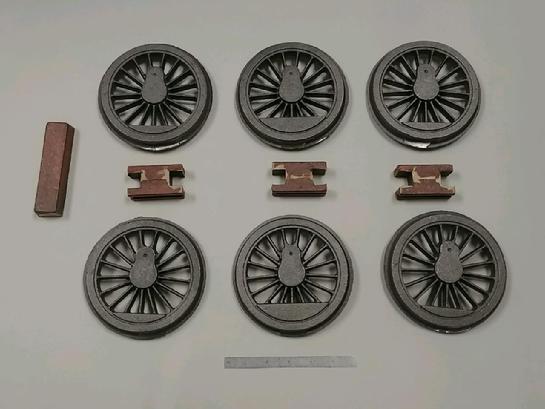

The drive wheel section for the 3/4" scale Pennsylvania K4 Pacific 4-6-2.

When Friends Models acquired the 3/4" scale K4 design by H.J. Coventry, castings for it had not been produced in at least 50 years. The drive wheels' master pattern was not present and had been missing for decades.

Here, after much development, Friends Models is very pleased to present to you....drive wheel castings for the 3/4" scale Coventry K4. This is the first time in close to sixty years, that they have been produced and made available.

They were produced from a pattern that was professionally made to Mr. Coventry's original specifications, so they are exactly the same as were formerly available from Mr. Coventry in the years from about 1925 to about 1960. However, Friends had a change engineered into the pattern. The outside diameter is slightly oversized, such that the castings may be machined with the main drivers "blind" (no flange), per the design; or, so that a flange may be machined in, for builders who prefer this. If you're building a "mantel piece" job that represents what the K4 looked like in a certain time period, you may want to use the "blind" drivers. If you are building your K4 to run at the track, you'll probably include flanges on the main drive wheels.

They are cast in gray iron at a foundry in New England, USA that produces some of the finest iron castings in the country. You will be delighted with them. (See customer comments about the quality of Friends Models' castings, HERE.)



The main (large counterbalance) drive wheel casting for the K4. Click the photo to enlarge.
The front & back (small counterbalance) drive wheel casting for the K4. Click the photo to enlarge.
The rear view of the "front and back" drive wheel (coupled wheel) casting. Click the photo to enlarge.


The Paypal button on the right is for your K4 "Drive Wheel Section" to be shipped to the USA. $695.00 plus shipping. (For shipping to other countries, please inquire.)







The Paypal button on the left is for your K4 "Drive Wheel Section" to be shipped to Canada. $695.00 plus shipping. (For shipping to other countries, please inquire.)





_______________________________________________________


Section 3: Cylinders


Cylinders, pair. Half-saddle piston valve type, exhaust ports and steam clearances "cored".
Cylinder back heads (2)
Exhaust Pipe Base
Exhaust Pipe Tip

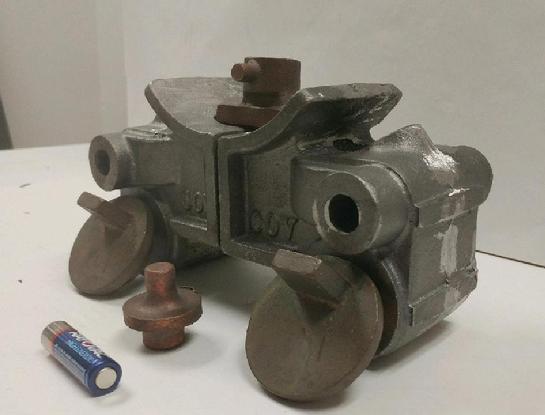

H.J. Coventry K4 cylinder castings

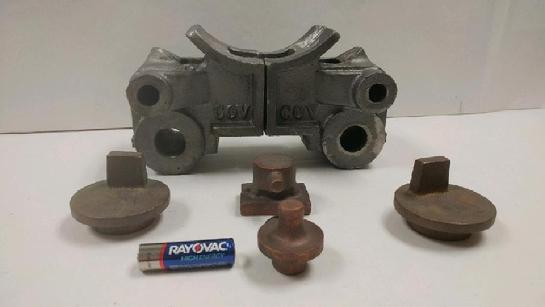

The 3/4" scale H.J.Coventry K4 cylinder section. Produced 2018 for the first time in almost 60 years. The castings have ribs on their outer faces to facilitate machining setups, and the steam chests and exhaust ports, are "cored" internally. This coring eliminates a drilling and boring operation that would have been a difficult job for the amateur machinist to accomplish. Sand cast in New England, USA.

H.J. Coventry K4 cylinder castings
Cylinders, cylinder rear heads, exhaust pipe base, and exhaust pipe tip.



The Paypal button on the right is for your K4 "Cylinder Section" to be shipped to the USA. (For shipping to other countries, please inquire.)

K4 Cylinder Section; USA Shipping
$695.00


K4 Cylinder Section; Canada Shipping
$695.00
The Paypal button at left is for your K4 "Cylinder Section" to be shipped to Canada. (For shipping to other countries, please inquire.)



_______________________________________________________


Section 4: TRUCKS


Engine Truck Bolster
Engine Truck Transom
Engine Truck Center Plate
Engine Truck Wheels (4)
Trailer Truck
Trailer Truck Bearings (2)
Trailer Truck Wheels (2)





H.J. Coventry live steam K4
The "Trucks" Section for the 3/4" scale K4 "Pacific" by H.J. Coventry is now available. All components "sand cast" the old-fashioned way in New England, USA to Mr. Coventry's original specifications of 1919 (updated 1960). Firearms cartridges are shown for size reference only and are not included. At left is .22 caliber "long rifle", and at right is ".38 Special".



Click the Paypal button at right for your K4 "Trucks" section to be shipped to the USA.

TRUCKS SECTION, 3/4" scale K4, USA shipping
$695.00


3/4" scale K4 TRUCKS section, Canadian shipping
$695.00
Click the Paypal button at left for your K4 "Trucks" section to be shipped to Canada.



_______________________________________________________

Section 5: BOILER & Accessories

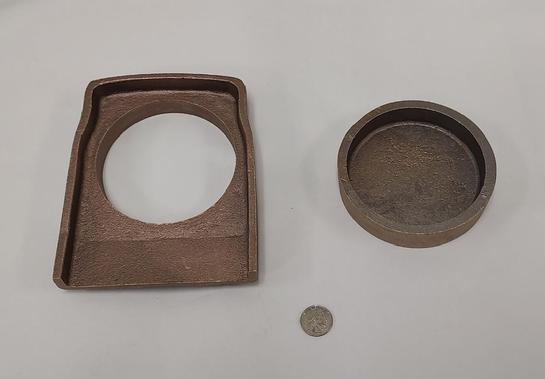

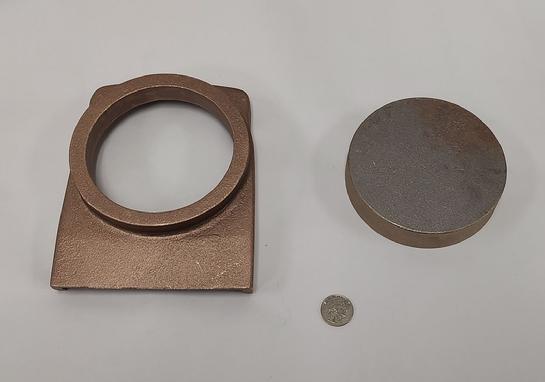

Throat Plate
Front Tube Plate
Superheater
Superheater Flange
Steam Dome
Steam Dome Cap
Steam Dome Cover
Throttle Seat
Stack
Firedoor Ring
Firedoor
Sand Box (sand dome)
Safety Valve Flange
Cab Front
Cab Sides
Cab Apron
Cab Reverse Gear Bracket
Smokebox Front
Smokebox Ring
Smokebox Door
Engineer Brake Valve
Bell Bracket
Bell
Headlight


IN PRODUCTION 2019/2020




_______________________________________________________


Section 6: TENDER


Tender Draft Casting (2)
Rear Footsteps at Tender
Front Footsteps at Tender
Body Bolster at Tender (2)
Tender Truck Frames
Tender Truck Bolsters
Tender Truck Transom
Tender Truck Bearings (8)
Tender Truck Wheels (8)
Tender Tank Filler
Hand Pump
Rear Coupler







H.J. Coventry Baltimore MD live steam K4 Pacific 4-6-2 castings

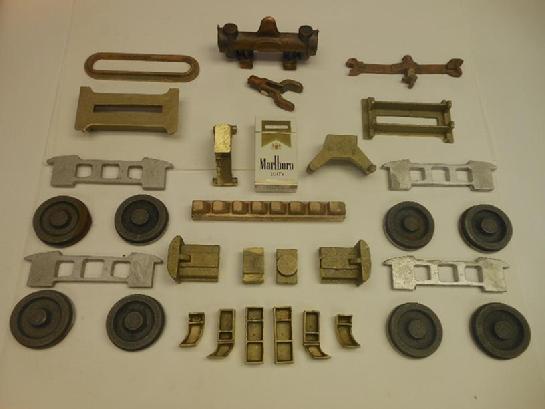

The "Tender Section" for the 3/4" scale K4 "Pacific". These parts have not been cast in FIFTY or more years, and are EXACTLY the same as the castings formerly available from Mr. Coventry during the era from about 1920 to about 1960. All are traditional "sand castings" made in New England, USA.



The Paypal button on the right is for your K4 "Tender Section" to be shipped to the USA.

K4 Tender Section; USA Shipping
$895.00


K4 Tender Section; Canadian Shipping
$895.00


The Paypal button on the left, is for your K4 "Tender Section" to be shipped to Canada.


_______________________________________________________

H.J. Coventry K4 4-6-2 Pacific Pennsylvania Railroad Friends Models Yankee Shop

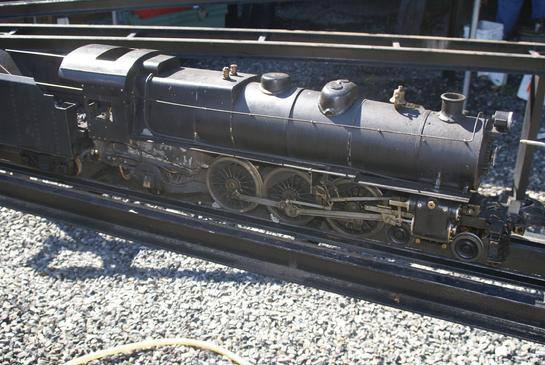

The H.J. Coventry K4 Pacific in 3/4" scale, 3-1/2" gauge. (Photo by Errol Groff, used with permission).
3/4" scale 3-1/2" gauge live steam HJ Coventry castings K4s

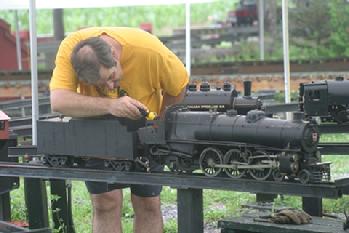

The 3/4" Scale, 3-1/2" gauge Pennsylvania Railroad K4 class 4-6-2 "Pacific".....the standard locomotive from the "Standard Railroad of the World". Designed by H.J. Coventry in the 1920s. Photo by Bernie Grow.
H.J. Coventry K4s Pacific Pennsylvania Railroad live steam castings

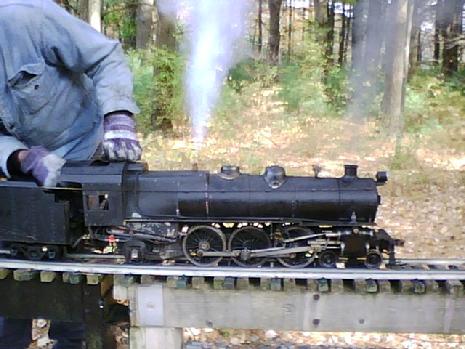

An example of the H.J. Coventry 3/4" scale, 3-1/2" gauge K4 "Pacific" under steam at Waushakum Live Steamers in Massachusetts, October 2008. This is a slightly modified version of the Coventry original, but the general outline is the same.
3/4" scale 3-1/2" gauge live steam castings cast iron K4 Pennsy Yankee Shop Friends Models
The tender, the backhead, the firedoor, and of course....the FIRE! This 3-1/2" gauge 4-6-2 will pull a few adults or several kids.....and will provide all the thrills of small-scale live steam operation that the hobby's pioneers, and those who came later, experienced and enjoyed for decades.
Classic Live Steam of Yesteryear
