1" Scale, 4-3/4" Gauge Baltimore & Ohio I-6 Class 4-4-0 "American" by H.J. Coventry


An 1890s-vintage American, designed in the late 1950s by Mr. Coventry (and off the market for about 5 decades), is now available. Critical castings are available below, & all other castings are in development.



HJ Coventry live steam castings

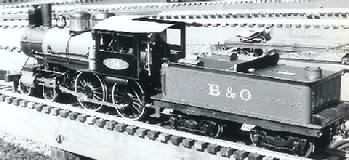

1" scale H.J. Coventry 4-4-0 built by Stan Robinson. Photo by Marty Knox, used with permission.

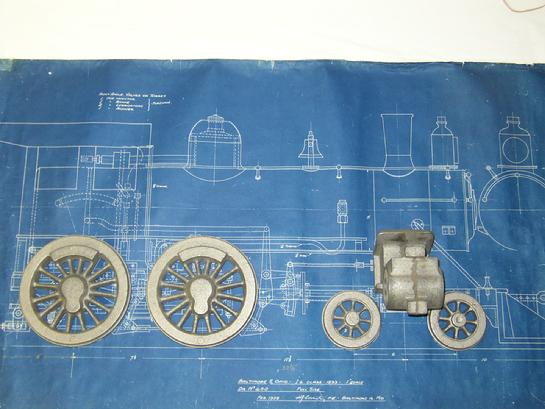

Cylinder and wheel castings overlayed on elevation drawing.






1" scale, 4-3/4" gauge I-6 class 4-4-0 "American" by H.J. Coventry


Bore:       1-1/4”

Stroke:      Approx. 2”

Driver Diameter:      6”
Lead Wheel Diameter:      3-1/4”
Tender Wheel Diameter:      3”

Boiler: Copper, silver soldered; 5” diameter (can be rolled from flat sheet, or, purchased from suppliers in the U.K.)

Steam Brakes

Valve Gear:      Stephenson Slide

Fuel:      Coal
Track Gauge:      4-3/4”




_______________________________________________________


Drawings

Complete set of 1" scale "American" drawings by H.J. Coventry.

The drawings are complete, and are of the same standard as regular engineering drawings. Each component is completely detailed, so as to avoid any confusion, or difficulty in interpretation.

$299 + $25 shipping





_______________________________________________________


Cylinder Section

Cylinders, pair


$250 + $25 shipping




_______________________________________________________


Wheels Section

Drive Wheels (4)
Pilot Wheels (4)

$420 + $30 shipping




_______________________________________________________


Cab & Domes Section

Dome Base
Dome Cover
Cab sides, 1L + 1R
Cab front, 1L + 1R

$495 plus $25 shipping




_______________________________________________________


Pilot Section

Pilot (cowcatcher)

$195 + $25 shipping




_______________________________________________________


Tender Section

Tender Underframe (aluminum)
Truck wheels (8)

$550 + $45 shipping

(Note: shipping amount for the "Tender Section" is approximate, the actual cost is based on your location. After your order is processed, you will be credited for any shipping overpayment or invoiced for shortage. Thank you.)




_______________________________________________________

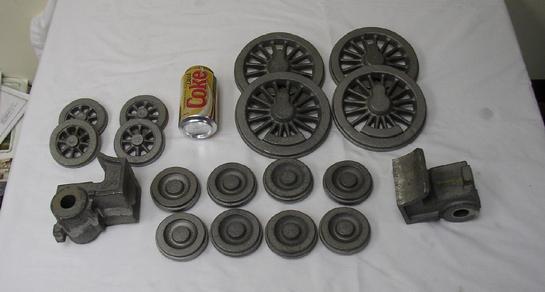

The iron castings that are available for the 4-4-0.

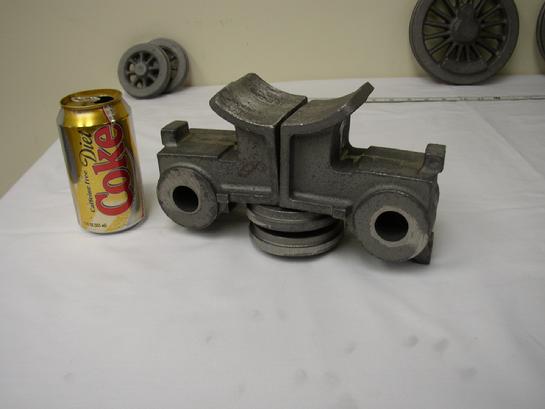

1/2-saddle slide valve cylinders for H.J. Coventry 1" scale 4-4-0.

HJ Coventry 1" scale live steam 4-3/4 gauge 4-4-0 American

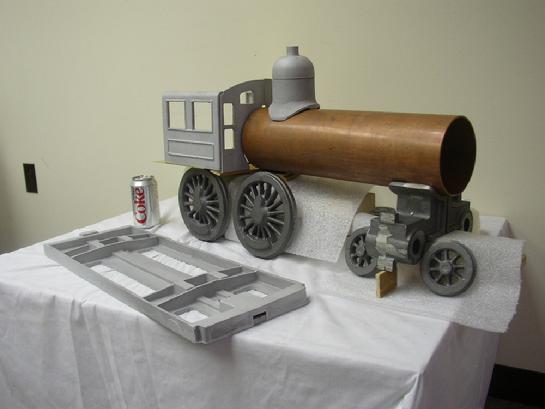

This is a mockup of the locomotive with some of the iron castings, plus the cab, the dome, and the tender bed. The pilot (cowcatcher) is available and is shown in the photo below. (Boiler shell shown for clarity only and is not included). The 5" O.D. boiler shell can be rolled from sheet, or bought from Reeves in the United Kingdom.

The Pilot (cowcatcher).
Another view of the Pilot casting.

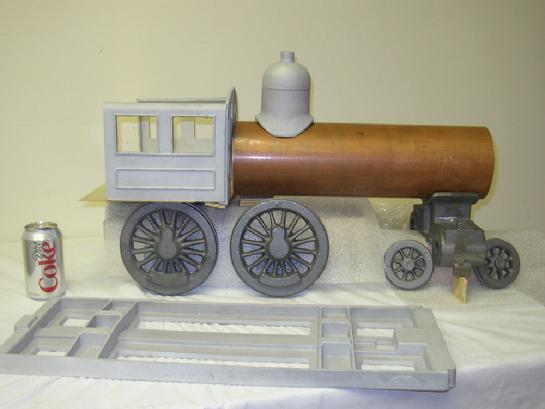

Another view of the general arrangement of the engine.

HJ Coventry live steam castings

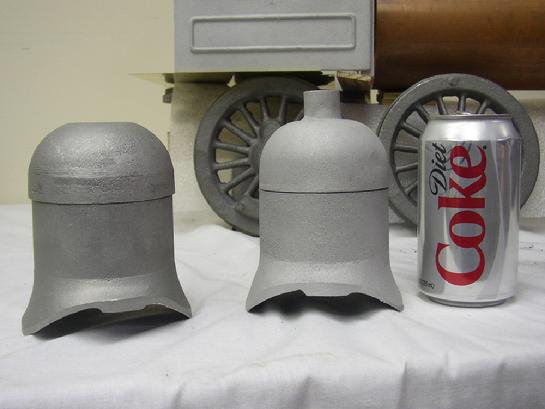

Here's an example of the quality of the castings available from FRIENDS YANKEE SHOP MODELS. At left, a steam dome and dome cover as sold by Mr. H.J. Coventry in the early 1970s. This was from one of the last, if not THE last, set of 1" scale 4-4-0 castings that Mr. Coventry sold. The steam dome is the correct size, but the cap was poured from a pattern that had double shrinkage, thus the cap appears too big for the dome. When redeveloping this design, I made a new pattern that had the correct shrinkage and machining allowance, as well as a chucking spigot to make machining easier.
_______________________________________________________


HJ Coventry live steam castings

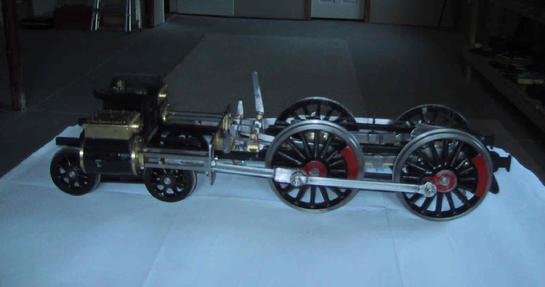

HJ Coventry 1" scale I-6 class 4-4-0 chassis, that was built by Moe S. from Ontario Canada.

HJ Coventry live steam castings 1 scale 4 3/4 gauge 4-4-0 American Friends Models Yankee Shop
The 1" scale FRIENDS YANKEE SHOP MODELS 4-4-0 that was built by Moe S.


HJ Coventry B & O RR I6 class 4-4-0 1" scale 4-3/4" gauge
The late Stan Robinson runs his newly completed I-6 class 4-4-0 with some passengers. The "flagman" on the rear, is a very young Keith Taylor of Jefferson, Maine, USA, the very last East-Coast Secretary for the Brotherhood of Live Steamers. Photo courtesy Keith Taylor.
_______________________________________________________


Please join the Friends Models' Email list for product news; castings updates; and more!
Please enter your e-mail address to join the E-mail list. You may unsubscribe at any time.


Classic Live Steam of Yesteryear



Rough Castings                                  Old-Fashioned Drawings & Blueprints



Friends Yankee Shop Models
100 Cummings Center
Suite 159-D
Beverly, MA 01915

Contact:

1-(978)-922-4400 (Phone, at my business "JFK Clock Repair")
1-(978)-922-4409 (24-hour fax)
info@friendsmodels.com



Thank you for visiting!
